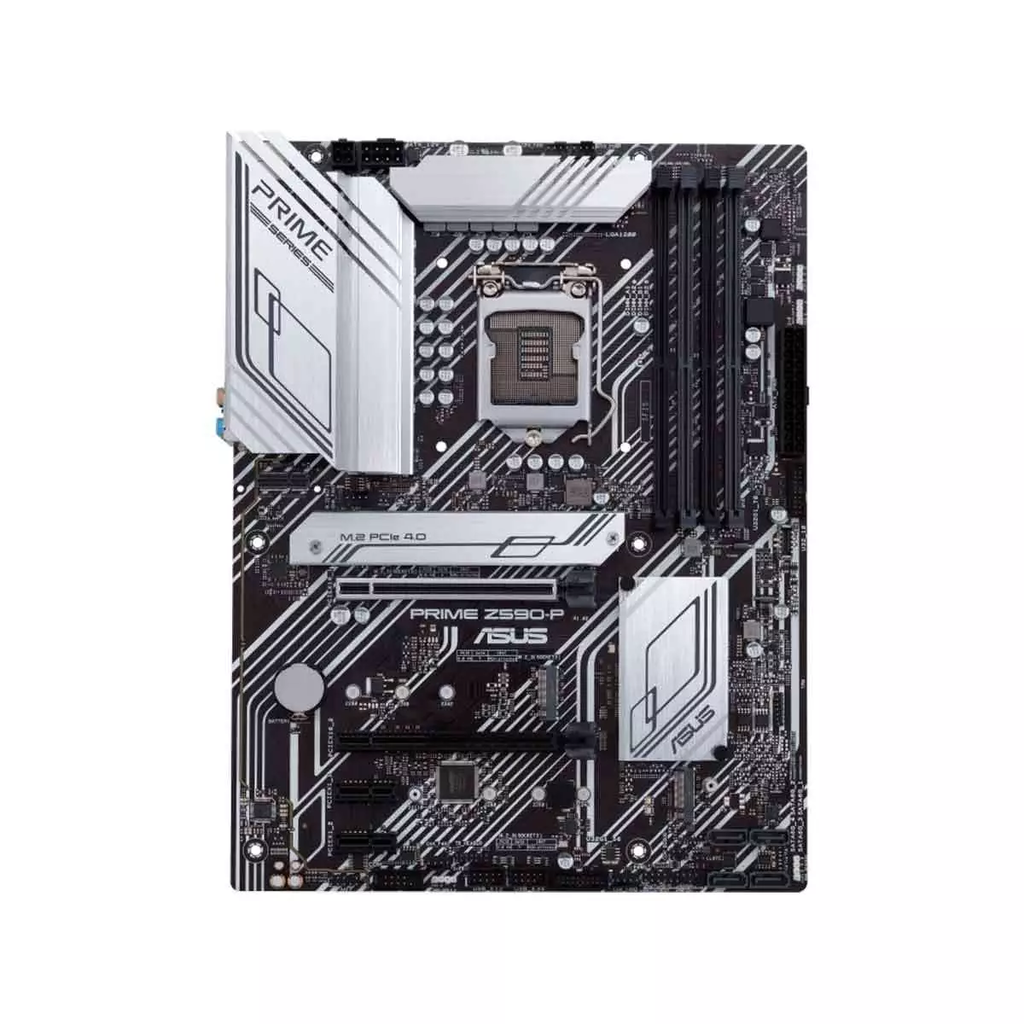

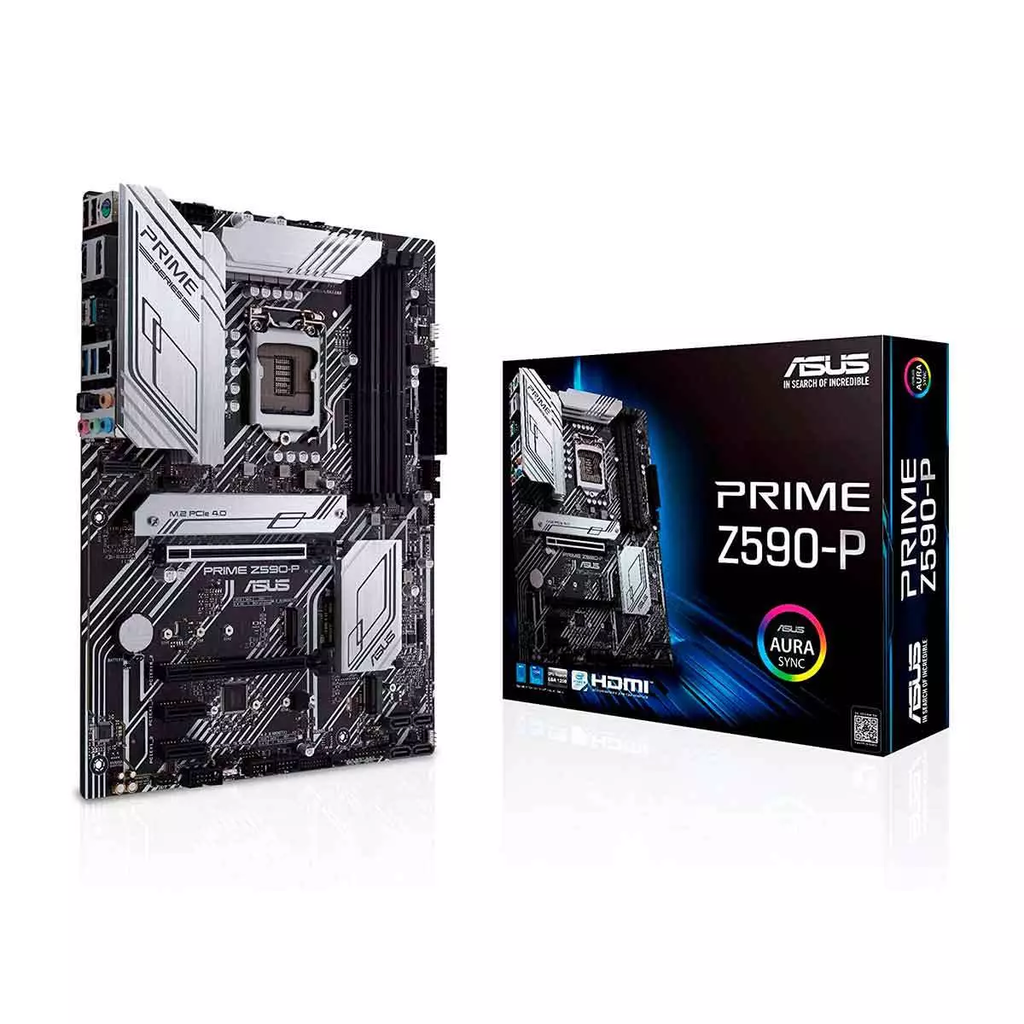

Intel Z590 (LGA 1200) ATX con PCIe 4.0, tres puertos M.2, 11 fases de poder DrMOS, HDMI, DisplayPort, SATA 6 Gbps, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, panel frontal USB 3.2 Gen 1 Type-C, compatibilidad con Thunderbolt 4 e iluminación Aura Sync RGB
Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Soporta Intel 14 nm CPU
SoportaÿIntel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Memory Channels: 4DDR4 (Dual channel)
Memoria soportada: 128GB

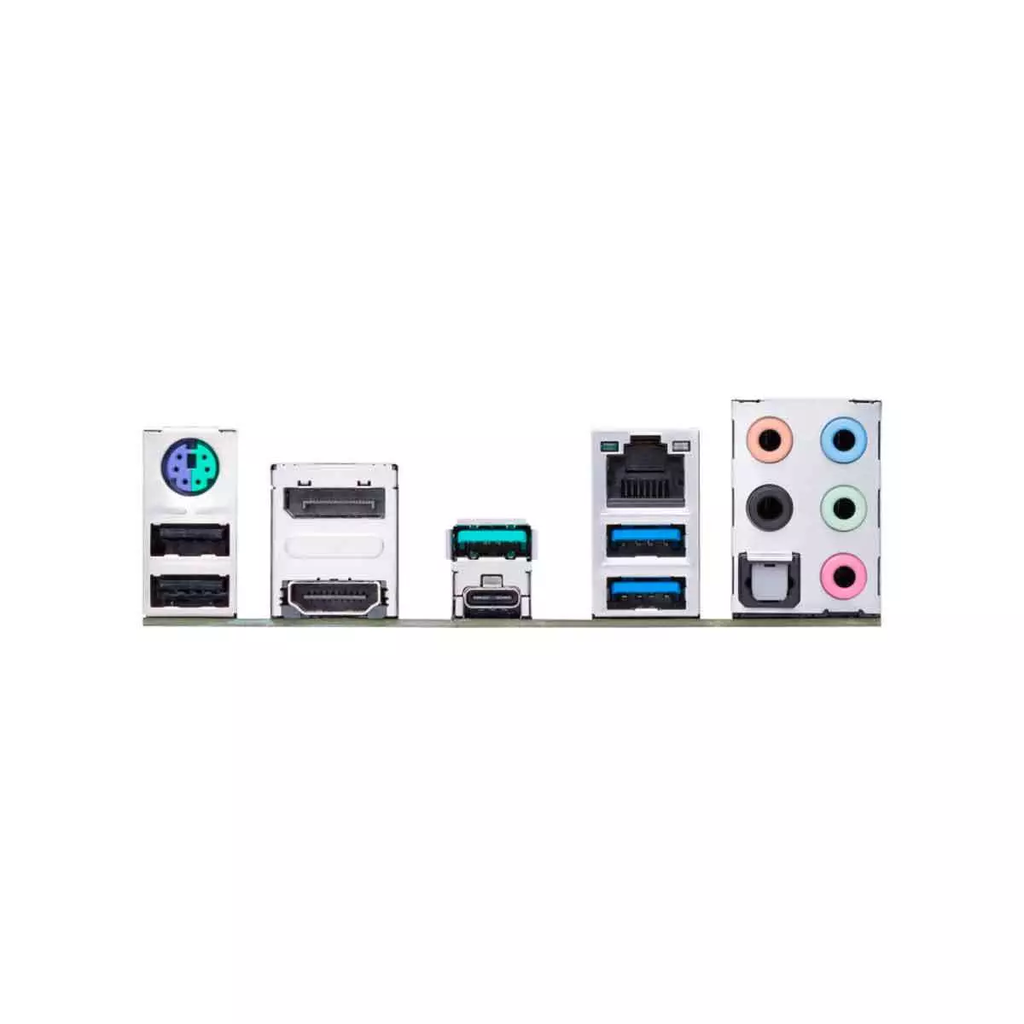

1 x DisplayPort 1.4
1 x HDMI? 2.0
1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
Intel 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel© 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes
- Intel© 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes
Intel Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C©)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 9 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C©)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports*
